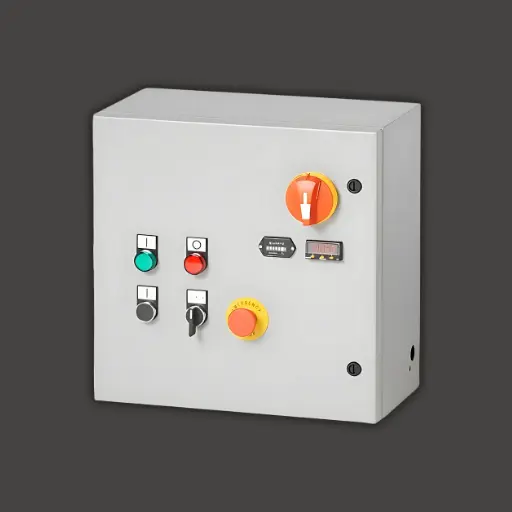

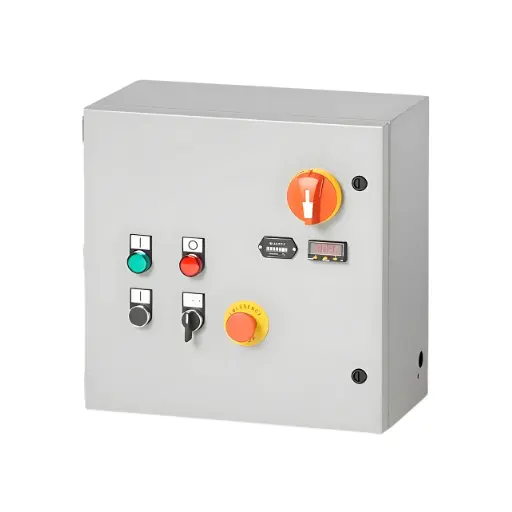

Control Panel

Product Advantages

• Automated System Control – Streamlines water treatment processes with precision.
• User-Friendly Interface – Intuitive buttons and digital display for easy operation.
• High Durability – Built with premium components for long-lasting performance.
• Overload & Short Circuit Protection – Ensures safety with inbuilt circuit breakers.
• Compatible with Multiple Systems – Works with RO plants, softeners, and filtration units.
• Energy Efficient – Designed to minimize power consumption.
• Real-Time Monitoring – Provides instant status updates on water flow and pressure.
• Customizable Settings – Adjustable parameters for different water treatment applications.
• Compact & Space-Saving Design – Easy to install in various industrial and commercial setups.
• Remote Access Options – Some models offer remote control via IoT integration.

Highlight Specifications

Product Customer Care Number

For installation, service, or troubleshooting assistance, call 8800199166 or email care@hydrosoft.in . Our support team is available to assist you.

Product Related Do’s & Don’ts

Do’s

✔ Ensure proper electrical wiring by a certified electrician.

✔ Regularly check for loose connections and secure them.

✔ Keep the panel dry and free from dust for long-lasting performance.

✔ Follow the user manual for configuring settings correctly.

Don’ts

✖ Do not overload the control panel with excessive electrical load.

✖ Avoid opening the panel while power is on to prevent electrical hazards.

✖ Do not expose the panel to direct sunlight or extreme moisture.

✖ Avoid tampering with internal wiring unless performed by a professional.

Product Repair Troubleshoots

• No Power Supply? – Check the main power connection and circuit breakers.
• Buttons/Display Not Responding? – Reset the panel and inspect for wiring faults.
• Frequent Tripping? – Verify electrical load and ensure no short circuit.
• Incorrect Readings? – Calibrate the sensors and check for loose connections.
• System Not Running? – Confirm correct settings and inspect relay components.

Product Service Guide & Future Service Schedule Information

• Monthly Inspection – Check wiring, fuses, and display functionality.
• Quarterly Cleaning – Wipe dust and moisture buildup for optimal performance.
• Annual Professional Servicing – Recommended for checking circuit health and firmware updates.
• Emergency Repairs – Contact the customer care number for urgent support.

Product Installation Guide

1. Select Installation Location – Ensure a dry, vibration-free wall-mounted or panel space.
2. Connect Electrical Supply – Wire the panel as per the electrical diagram provided.
3. Mount the Panel Securely – Fix using screws and ensure proper grounding.
4. Configure Settings – Adjust settings based on system requirements.
5. Test the System – Turn on the power and verify proper functionality.

Frequently Asked Questions (FAQs)

Q1. Can the control panel be used for different water treatment systems?

A: Yes, it is compatible with RO plants, softeners, and filtration systems.

Q2. Does it support remote monitoring?

A: Some models offer IoT connectivity for remote access and control.

Q3. What should I do if the panel stops working?

A: Check the power supply, circuit breakers, and wiring connections.

Q4. How often should the panel be serviced?

A: Monthly inspections and annual professional servicing are recommended.

Q5. What kind of protection does the panel have?

A: It includes short circuit, overload, and voltage fluctuation protection.

Q6. Can I customize the control panel settings?

A: Yes, you can adjust the timers, flow rate, and operational modes as per system needs.
